[Question] Training zones according to ergospirometry test

Hey guys,

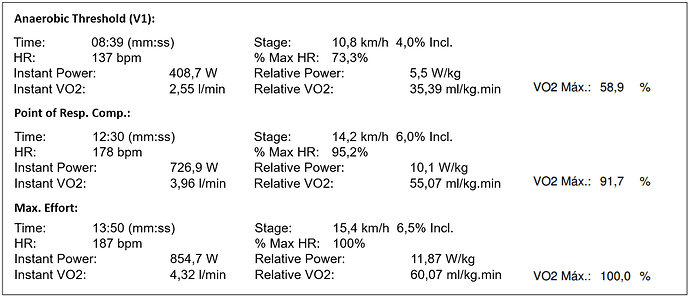

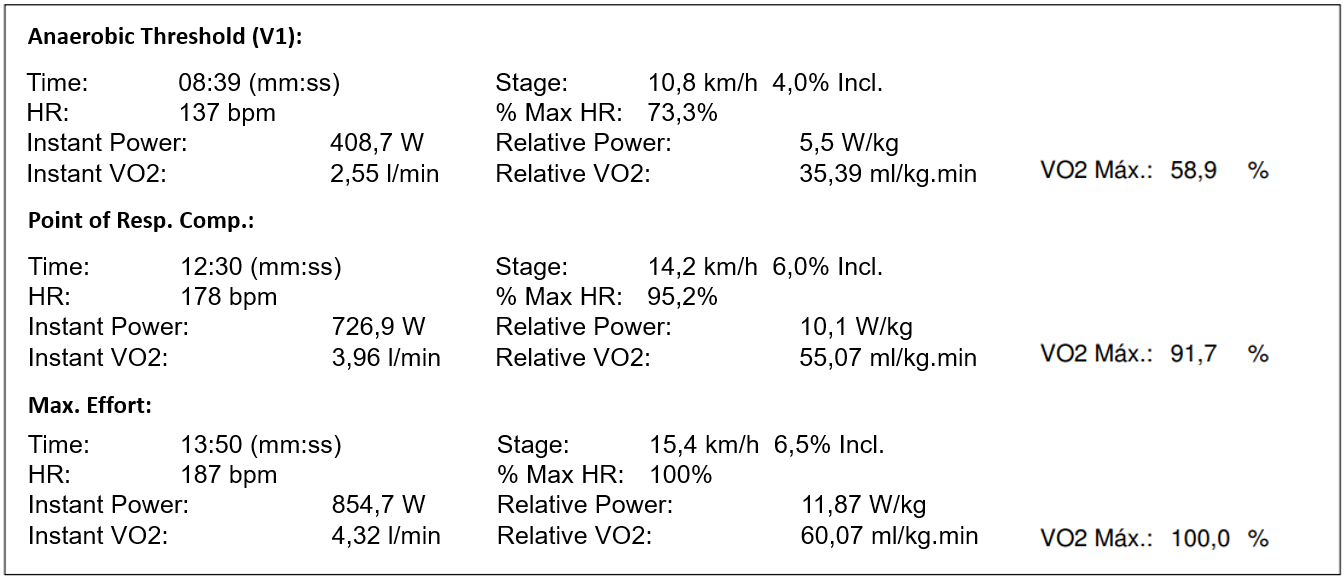

so last week I did a ergospirometry test where the results are presented bellow:

How should I define my HR training zones according to this result? Does the V1 Value should be the top of my Z2 (Joel Friel 5 Zones)? Cause it doesnt match with what is calculated for a LT of 178bpm…

Thank you!

In your screenshot, V1 is called anaerobic threshold, which is MLSS/LT2.

However, your heart rate is 73.3% of maxHR, so V1 looks to be your aerobic threshold; they appear to have labelled it incorrectly.

So V1 would be the top of zone 2 as you have asked.

3 Likes

Thanks for your answer @Gerald!

But I still not understanding it. As I mentioned, if I use any of the HR Zones calculation methods (Joe Friel, MyProCoach, etc.) my Zone 2 is way higher than the value above…

The body doesn’t know or understand zones. There is, in my opinion, far too much emphasis placed on what our ‘zones’ are.
You’ll know yourself what your zones are.
To give you an idea … I am still not recovered from COVID that I got last July. Ask me today to go out and ride 315 watts for an hour and I guarantee I can do it (not that that is anything to write home about, but hear me out). That would put my Z2 to about 175w to 235w. It’s nowhere near that however. I estimate at the minute that my upper Z2 (aerobic threshold) is 160-170 watts.
So I have my FTP in at 280 but that’s really just to track TSS. My endurance spins at the minute are done at 150 -160 watts (down from 210w a year ago).
Forget about your ‘zones’ on paper and ride to what they actually are. You’ll know by your breathing where you’re at.

Summary - If you think you might be going too hard on an endurance ride then you’re going too hard ;-). It doesn’t matter a jot what Coggan’s or Friel’s zones say you should be doing. Ride to feel on those aerobic spins. You’ll know yourself without ever looking at the watts or HR

1 Like

I’ll give you a better explanation later. Some of what @nasatt has said is true, but some things require some extra explanation.

1 Like

??? The power values imply an FTP around 600-650W. Shouldn’t anyone with these kind of values be followed by a pro team?

1 Like

Where do you get 600W?

An ergospirometry test is a ramp test to exhaustion with the purpose of eliciting VO2max. AT/FTP is very roughly about 75 % of max power.
Unless this was another protocol?

That was made on a Treadmill, not biking :stuck_out_tongue:

The way I interpret is much the same, i.e. +/- 75% of peak power is a proxy for FTP.
The V1 heart rate appears to be inline too, at 70-75% of maxHR.

However, a (relative) VO2 of 60.07 seems a bit low for the watts produced.
I’m wandering too what the testing protocol was.

How were the watts captured? What device?

It was a Treadmill.
