Suunto import, cycling Power data misread, shown as 0W flat line

Bug Reports
1

Hi,

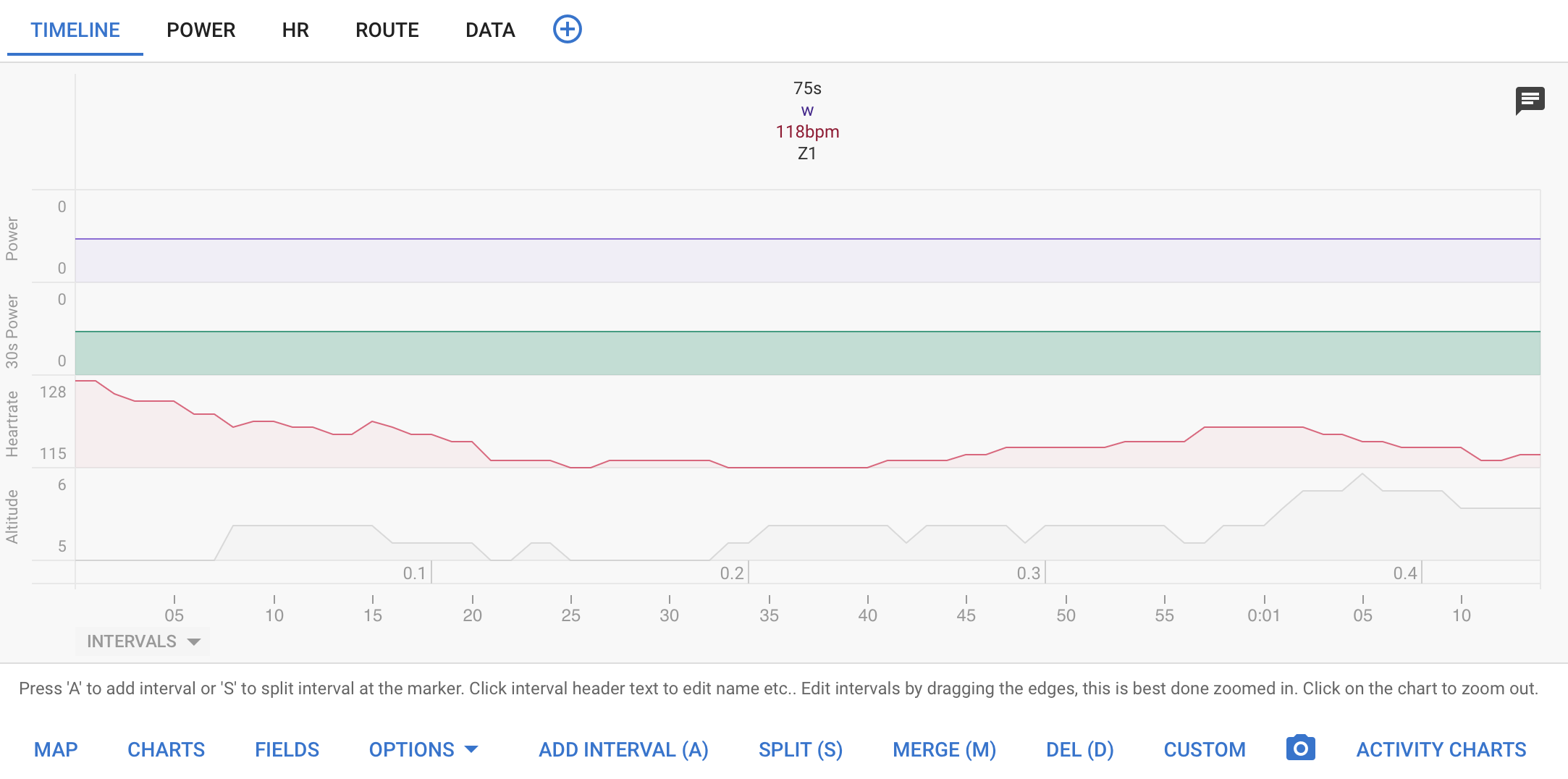

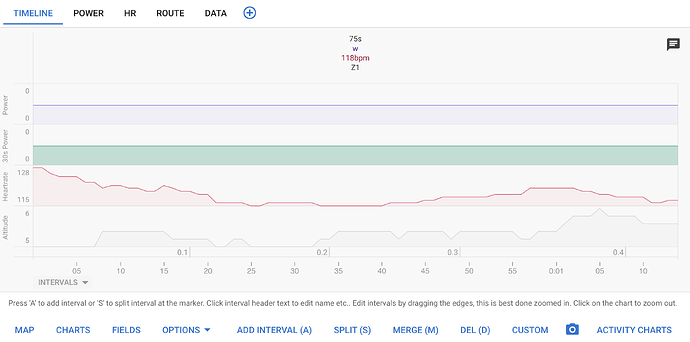

Whenever a cycling activity is synced from the Suunto App to my account, I can see the other metrics displayed correctly, but the Power curve shows a 0 W flatline.

image2166×1076 128 KB

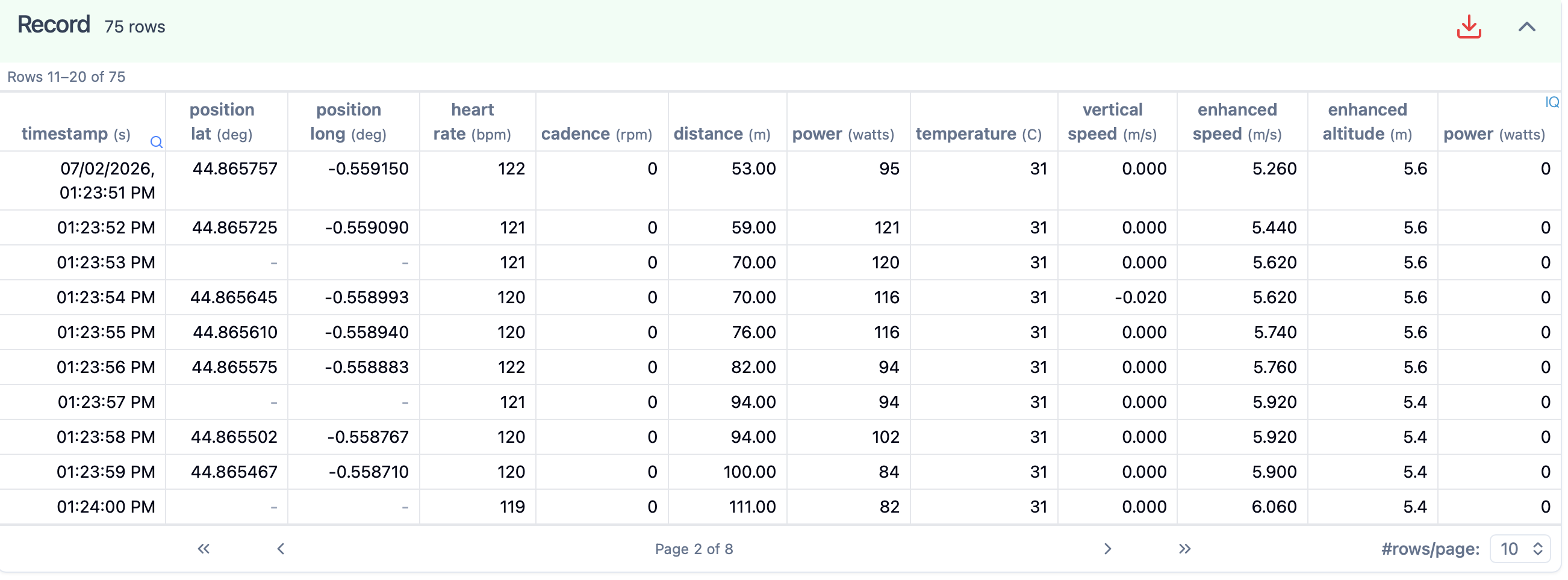

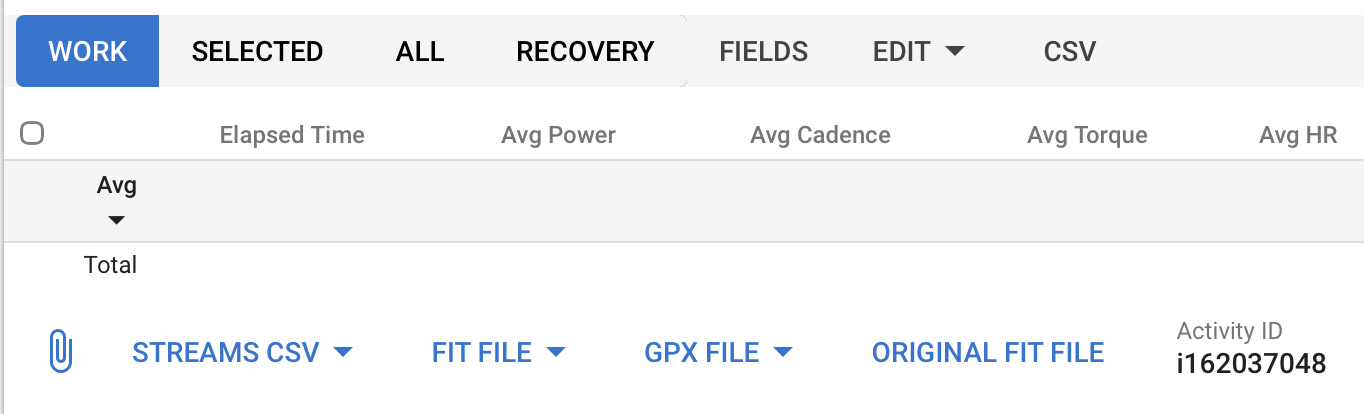

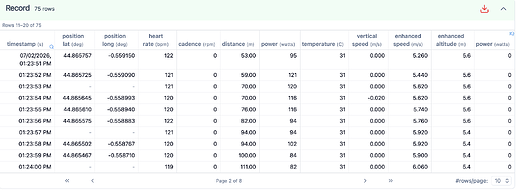

The original fit file downloaded from the interface correctly contains data in the power column :

image1364×414 26.1 KB

image2604×964 238 KB

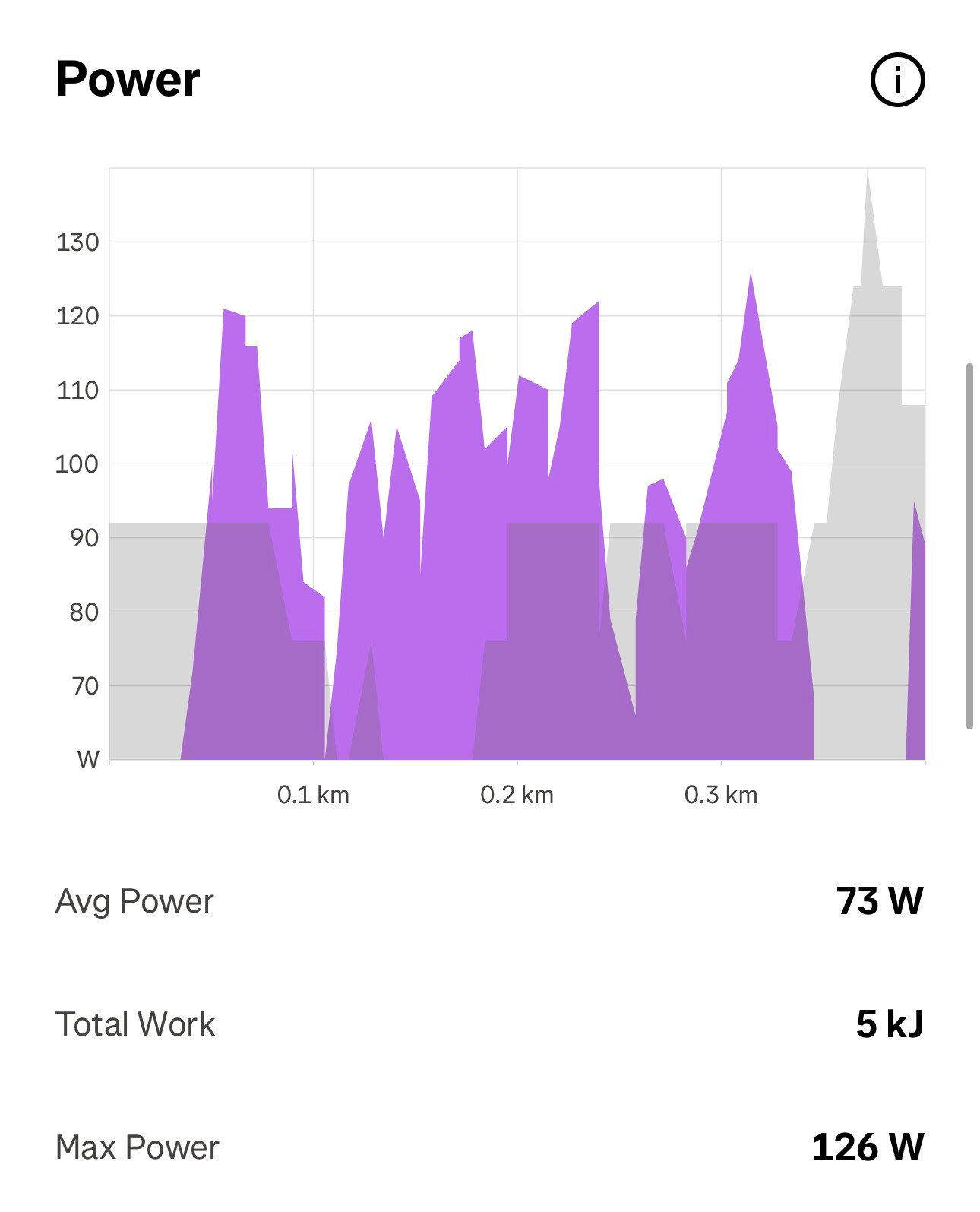

The same activity synced from the Suunto app to Strava correctly displays the power data :

image1290×1595 112 KB

I suspect there is an issue somewhere in the integration of the Suunto fit file to the Intervals app.

User setup :

  • Suunto Vertical
  • 4iii 3+ Power meter
  • Suunto app connection enabled in Intervals.icu settings

Steps to reproduce :

  • Record activity with Suunto app
  • Activity is correctly synced in Intervals (Expected)
  • Original fit file available in Intervals contains data in Power column (Expected)
  • Power data doesn’t display correctly in the activity. Observed behavior : power curve is shown as a 0 W flatline. Expected behavior : power curve should show the power data available in the fit file power column.
2

Did you configure FTP and power zones on settings page?

3

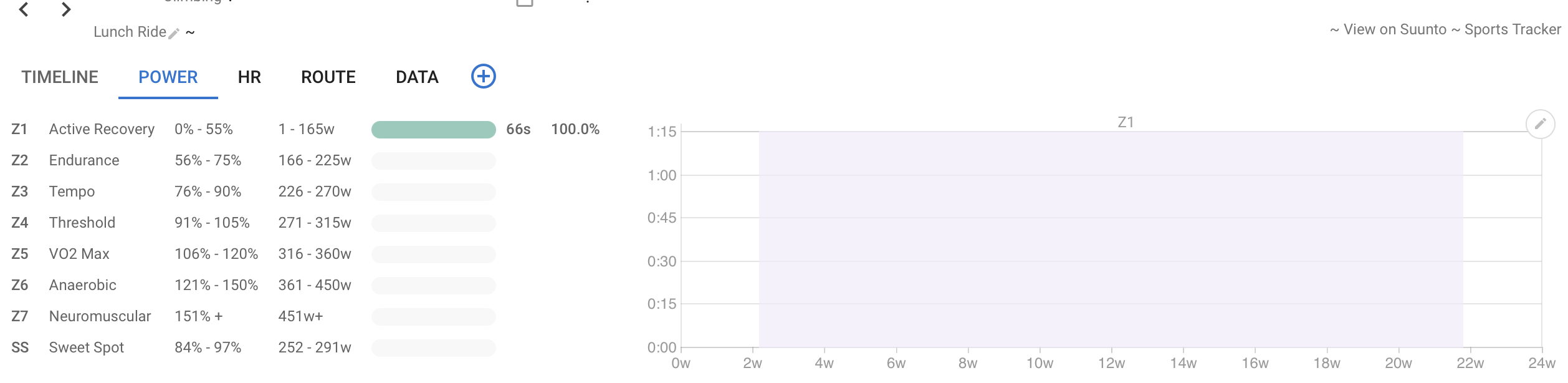

Do you mean in the activity Power tab ? I entered an estimated FTP, which I believe was used to deduct zones :

image2516×614 67.1 KB

Everything is shown in Z1, even in other activities where the data actually goes over 165W.

4

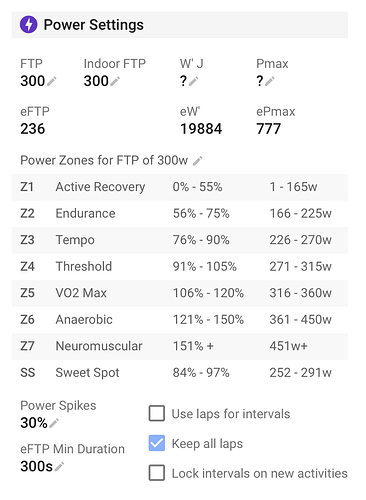

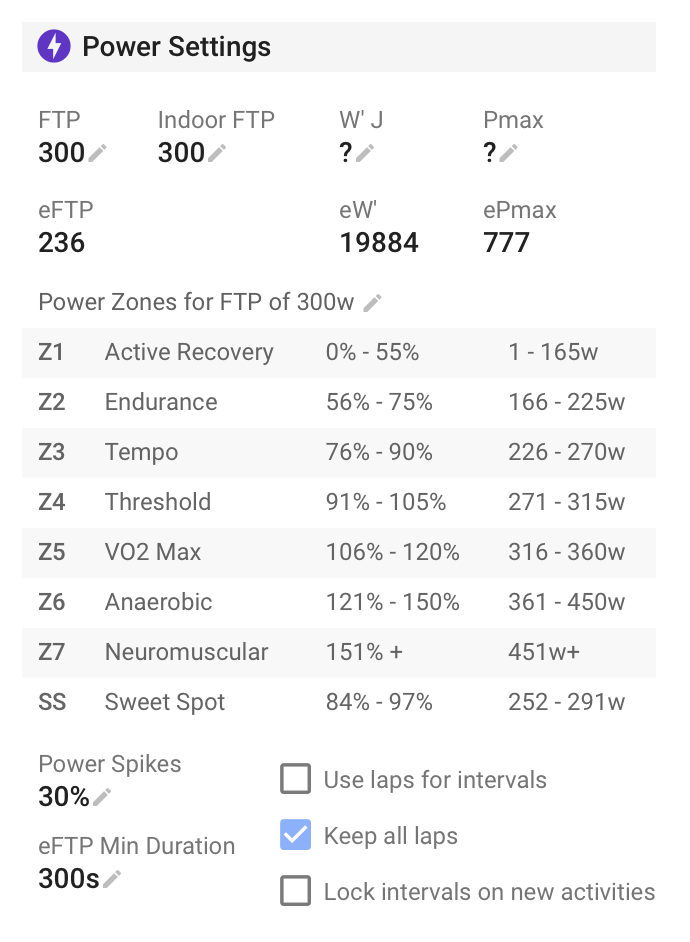

I found the settings screen you were probably referring to, the zones seem to be configured :

image690×942 61.5 KB

5

How comes your cadence is zero?
I’m pretty sure Intervals uses cadence in its algorithm to detect false power values.
AFAIK, every power meter also sends cadence.
And you have a second power stream from an IQ field which is zero (probably because cadence is zero).
Check the Actions-Settings menu to see you can select the other Power stream.
You for sure have some strange configuration that is misleading Intervals.
