Expose Fluid Consumed

[Sindell]

Garmin asks me how many kCalories I ate and how many water bottles I drank when I’m saving an activity. Only the kCalories seems to be exposed by intervals.icu, though. Why isn’t there a field displaying “fluid consumed”?

[R2Tom]

It may not be exported by Garmin.
If that is the case, you can create a custom field and fill it in choosing the record field.

[Gerald]

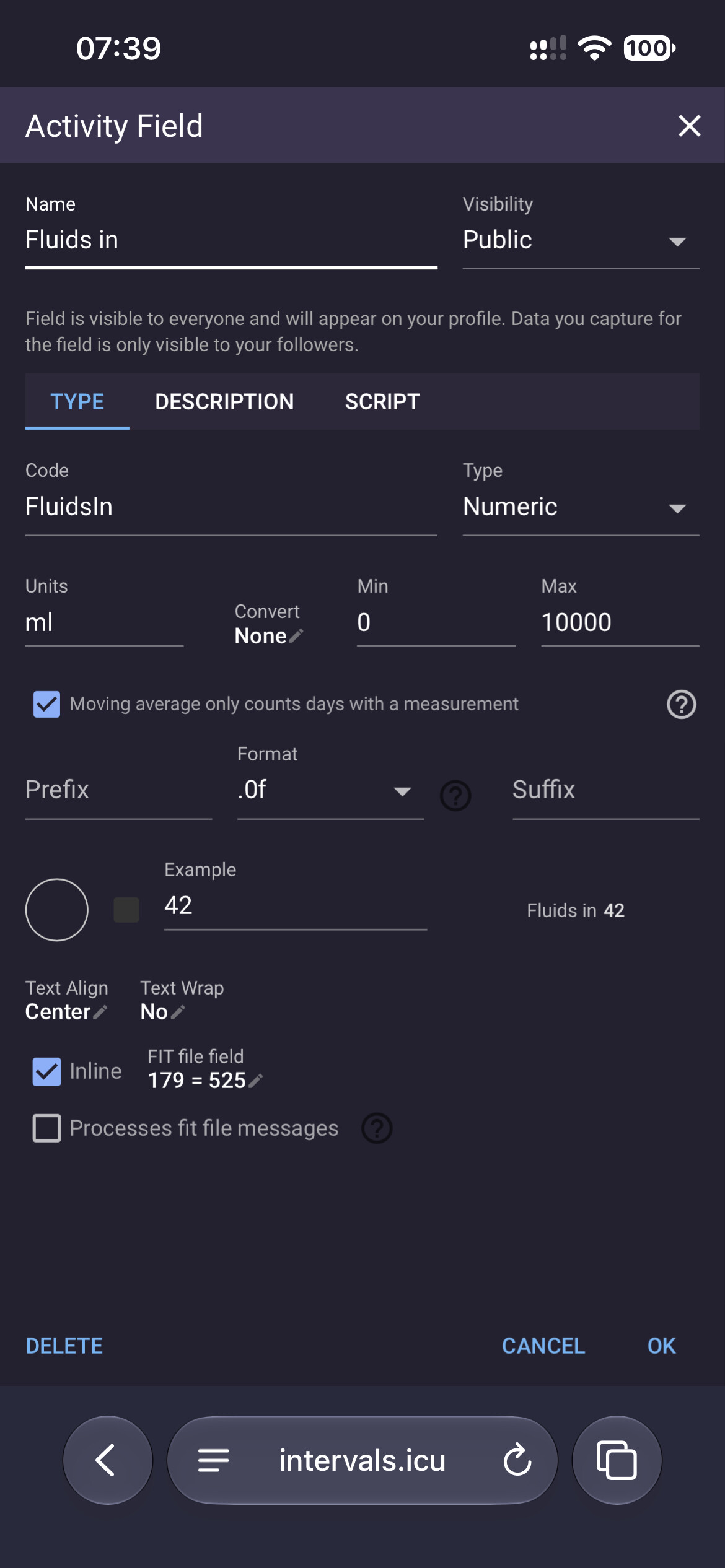

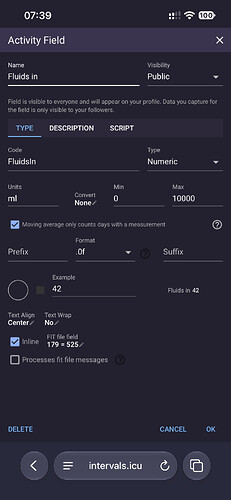

There’s a field called “Fluids in”.

[Sindell]

I’ve tried using the field, but it doesn’t populate. I’ve also tried setting it to:
179
fluid_consumed
fluid consumed
It always ends up blank. I’ve pulled the FIT file for the activity I’m working with, and it has a number in the field.

[Gerald]

Show a screenshot, please.
It’s easier to troubleshoot specific settings.
Have you reprocessed the activity/ies where you want to apply this?

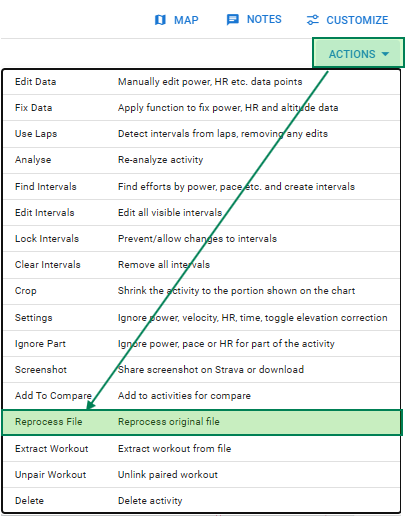

Single activity - Actions, Reprocess file

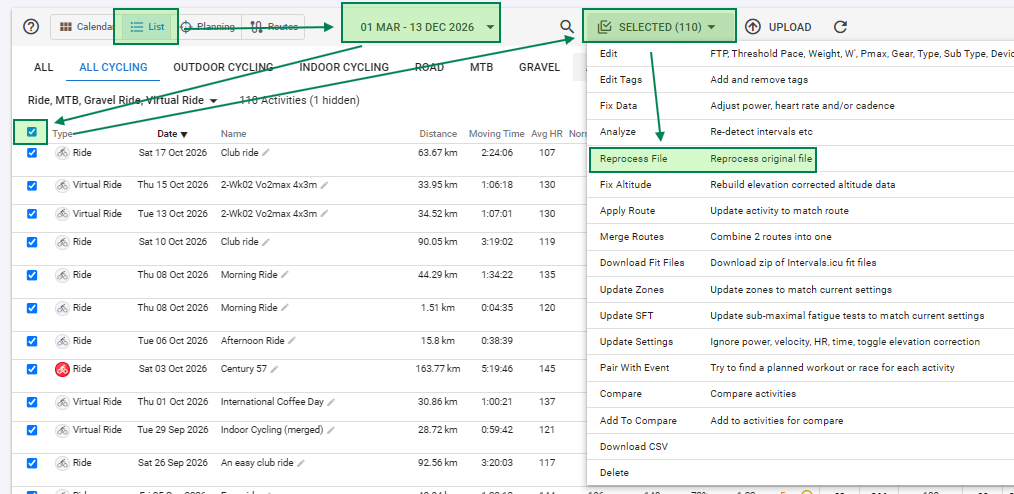

Multiple activities - List view, select date range, tick boxes, Selected dropdown, Reprocess file

[Sindell]

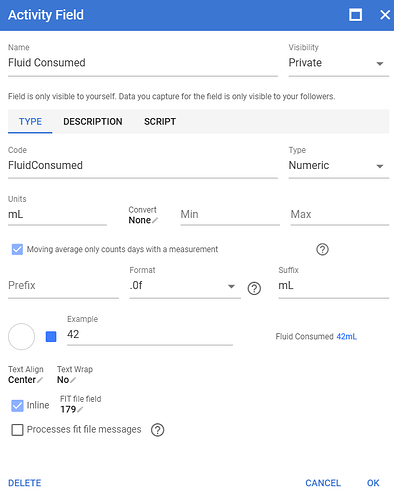

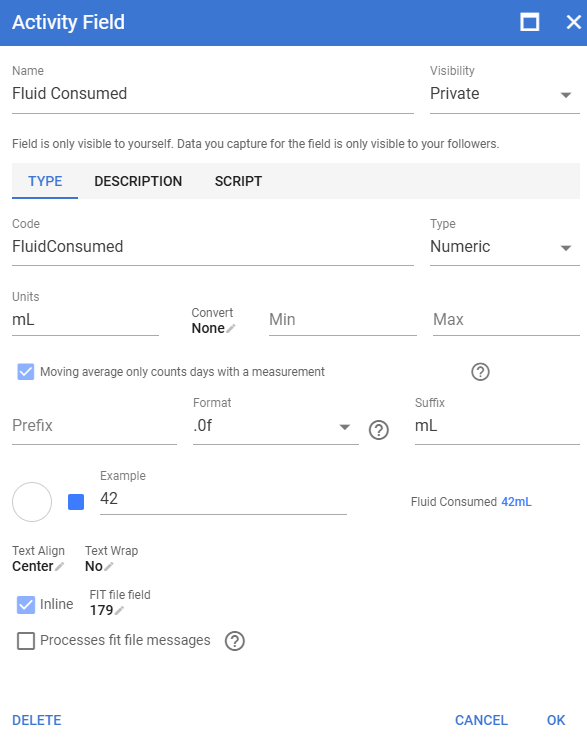

Here is the field definition:

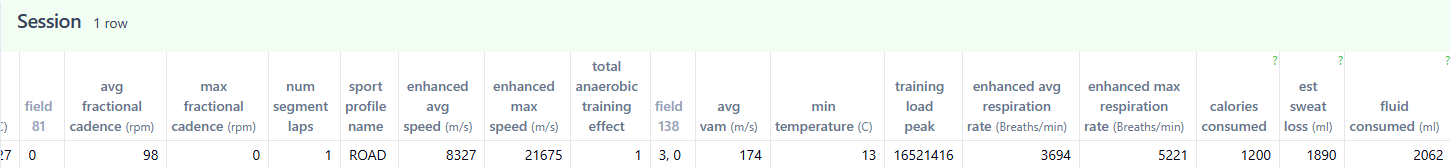

Here is the field in the FIT file:

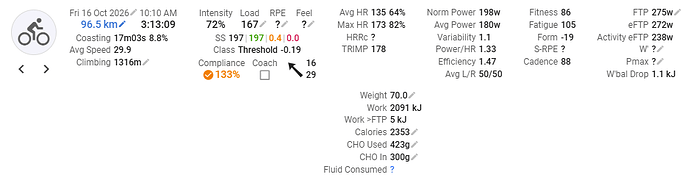

Here is the summary view of the activity after reprocessing (I’ve initiated the reprocess both ways):

I’ve also tried uploading the FIT file again in case it’s somehow corrupt.

[Sindell]

(I’ve changed this to a bug report since it seems like a bug in the FIT file parser)

I tried finding this field using a script, and it looks like the field list for Session inside the FIT file is incomplete. FitFileViewer shows 64 fields in the Session section, but I only count 54 fields when running this script:
{
let s = icu.fit?.m_18?.[0];
if (!s) {
console.log(‘no session message’);
} else {
console.log(‘field count:’, s.length, ‘| keys on a field:’, Object.keys(s[0]).join(‘,’));
console.log(s.map((x, i) => i + ‘:’ + (x.name ?? x.num)).join(’ '));
s.filter(x => x.num === 179 || x.num === 177 || /fluid|calor|17[79]/i.test(String(x.name)))
.forEach(x => console.log(‘HIT’, x.name, x.num, x.value ?? x.getValue?.()));
}
}

output:
ield count: 54 | keys on a field: getNumValues,getIsAccumulated,getValueName,getName,toString,getValue,getUnits,getNum
0:timestamp 1:start_time 2:start_position_lat 3:start_position_long 4:total_elapsed_time 5:total_timer_time 6:total_distance 7:total_cycles 8:nec_lat 9:nec_long 10:swc_lat 11:swc_long 12:end_position_lat 13:end_position_long 14:total_work 15:sport_profile_name 16:enhanced_avg_speed 17:enhanced_max_speed 18:training_load_peak 19:message_index 20:total_calories 21:avg_power 22:max_power 23:total_ascent 24:total_descent 25:first_lap_index 26:num_laps 27:normalized_power 28:training_stress_score 29:intensity_factor 30:left_right_balance 31:threshold_power 32:unknown 33:avg_vam 34:enhanced_avg_respiration_rate 35:enhanced_max_respiration_rate 36:enhanced_min_respiration_rate 37:metabolic_calories 38:event 39:event_type 40:sport 41:sub_sport 42:avg_heart_rate 43:max_heart_rate 44:avg_cadence 45:max_cadence 46:total_training_effect 47:trigger 48:avg_temperature 49:max_temperature 50:avg_fractional_cadence 51:max_fractional_cadence 52:total_anaerobic_training_effect 53:min_temperature
HIT total_calories 11 2353
HIT metabolic_calories 196 262

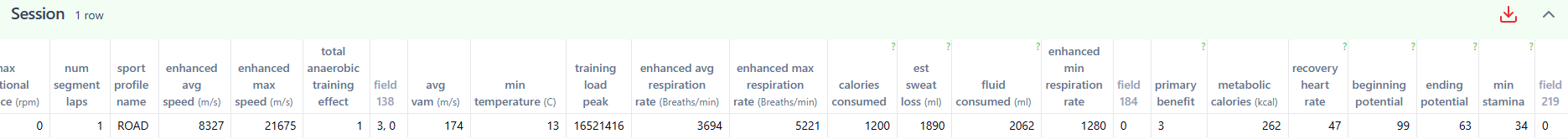

Here is the same file in FitFileViewer showing all 64 fields:

[Sindell]

I tried looking at some other rides, and the field is populating properly just using 179 as the FIT file field. There must be something in the FIT file I was using to test that is causing a parsing issue (activity i198117200).

[R2Tom]

I think you missed the hint that Garmin is filtering data recently

Garmin FIT fields not coming in (Possible Garmin is Filtering Data prior to sending to intervals.icu)

from runalyze forum: mipapo: Garmin says: “Garmin has recently made over 100 new fields publicly documented and all messages and fields previously documented in the FIT SDK are still available. Undocumented messages and fields are removed before files are sent to third-party platforms. The original file can still be downloaded from Garmin Connect.”

You can check by comparing fit file from intervals and fit file from Garmin.
