Hello everyone. I have extended phenomenal tool @niqwis’s 80/20 Workout importer in Python. And I belive I have solved the issue about importing cycling exercises with FTP zones instead of HR zones.

Being a beginner in the triathlon, I might have made several mistakes in terminology, please be vary.

It can be installed from PyPI as well as source code can be found at melihakay/8020-Fetcher.

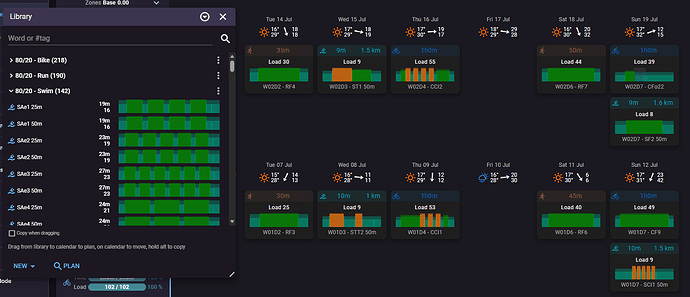

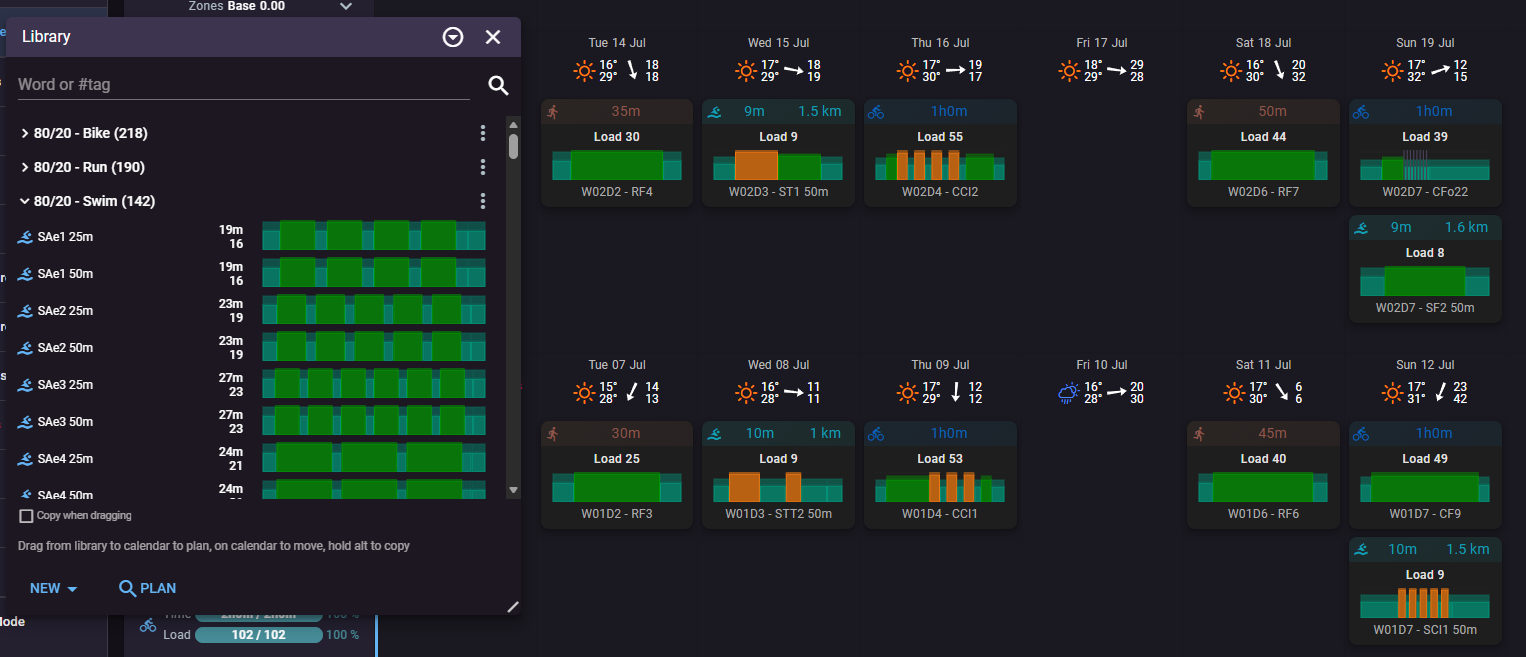

Here is a quick preview after import:

image1526×657 98.9 KB

Hope that would be useful to others as well.

eticu: 80/20 Endurance to Intervals.icu

eticu is a Python CLI pipeline that scrapes the free 80/20 Endurance workout library, parses and converts the .FIT files into fully structured Intervals.icu workouts, and idempotently uploads them to your Intervals.icu workout library.

It serves as a more robust, metric-first Python reimplementation of the 8020-intervals-icu TypeScript project, completely fixing target loss issues during imports, nested repeat structures, and adding idempotent uploading.

Scope Note: Brick (BR*) workouts do not exist as .FIT files in the library and are therefore also out of scope.

Installation & Setup

This project uses uv for dependency management.

  1. Clone the repository:

    git clone <repo-url>
cd 8020-fetcher

  2. Environment Variables:
    Copy .env.example to .env and set your Intervals.icu credentials:

    INTERVALS_API_KEY=your_intervals_api_key
INTERVALS_ATHLETE_ID=your_intervals_athlete_id

    You can find these in your Intervals.icu settings.

Usage

To run the full pipeline (scrape → download → upload):

uv run eticu all

Options:

  • --dry-run: Do everything except network writes to Intervals.icu.
  • --cycling-power: Emit Power targets (instead of Heart Rate) for Ride workouts. (Run and Swim always remain HR).
  • --cache-dir <dir>: Directory to cache downloaded .FIT files (defaults to 8020_cache).

To convert and view a single downloaded .FIT file locally:

uv run eticu convert 8020_cache/bike/CCI1.FIT

To upload a training plan from a CSV file (e.g. plans/olympic_distance_level_0.csv):

uv run eticu upload-plan plans/olympic_distance_level_0.csv --name "Olympic Level 0"

Exercise names in the CSV’s should be same as the 80/20 FIT files.

Options:

  • --pool-length: Pool length in meters (e.g., 25 or 50) for swim workouts.
  • --dry-run: Parse the CSV and list the plan without uploading.

Critical Prerequisites

For the generated workouts to be accurate, you must configure your Intervals.icu settings to match the 80/20 Endurance methodology.

1. The 7-Zone Prerequisite

80/20 uses a 7-level zone system with two crossover zones: 1, 2, X, 3, Y, 4, 5.
Intervals.icu supports 7 zones (Z1 to Z7). eticu maps them sequentially.
You MUST update your Intervals.icu HR zones (and Power zones, if using --cycling-power) to match the numbers from the 80/20 zone calculator.

80/20 Zone Intervals.icu Zone
Zone 1 Z1
Zone 2 Z2
Zone X Z3
Zone 3 Z4
Zone Y Z5
Zone 4 Z6
Zone 5 Z7

Note: Because of crossover Zone X, 80/20’s “Zone 3” maps to Intervals “Z4”.

2. The --cycling-power Option & ERG Mode

By default, 80/20 workouts use Heart Rate targets. However, platforms like Zwift in ERG mode ignore HR targets; they require Power (%FTP).

If you ride on Zwift/TrainerRoad, pass the --cycling-power flag. This converts all Ride workouts to use Power zones.

  • Prerequisite: For this to work, you MUST have your FTP and 7-level Power zones correctly configured in your Intervals.icu settings. If you don’t, power targets will be meaningless.

Core Behaviors

  • Metric Units: All outputs are metric. Run and Ride distances are rounded to the nearest 0.1 km. Swims are strictly handled in meters (mtr in Intervals.icu to distinguish from minutes).
  • Pool Lengths: Only 25m and 50m swim workouts are fetched and processed. 25y files are skipped.
  • Folder Layout: Workouts are uploaded into three flat folders (created automatically if they don’t exist):
    • 80/20 - Run
    • 80/20 - Bike
    • 80/20 - Swim
  • Idempotency: The upload is completely idempotent. It matches workouts by exact name within the folder and skips identical workouts, preventing duplication if the script is run multiple times.

Credits & License

This project was heavily inspired by the GPL-3.0 licensed njg4ne/8020-intervals-icu project, expanding its capabilities into a fully-typed Python package with deeper FIT file introspection.

1 Like
2

I kept the plan in the screenshot since it is the free sample from the 80/20 Endurance. We can remove it if it would lead to copyright issues.

3

Hello - can you share your library instead of everyone having to import themselves?

4 Likes
4

Would really appreciate this!

5

Alright I made the libraries public :smiley: All three should be available in the workout browser.

I noticed some of the swimming workouts appear to have wrong pool size when started from my FR255 (eg. 50m workout show up as configured for 25m pool size). This might be related to how I import the FIT files. I will investigate this problem soon and update the workout library after the fix.
