Add a vertical speed graph

[segi_pn]

In the Suunto app, I can view a graph showing my vertical speed. This is interesting for mountain biking.
I think it calculates it from the real barometric altitude.
Is it possible to add a vertical speed graph to Intervals.icu?

[R2Tom]

You can add the VAM stream chart (Charts → VAM)

[segi_pn]

Thanks!

[miguell]

I allready created a custom stream for Vertical Speed. Garmin defined it in m/s. However you can create a script with *60 to get m/min values you want.

[segi_pn]

Yes, I tried it, but I could not find the name of the scripting parameter.
Take a look here.

Server side data model for scripts

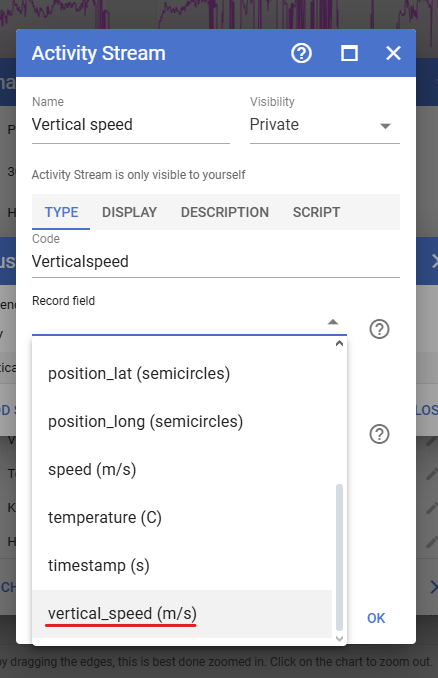

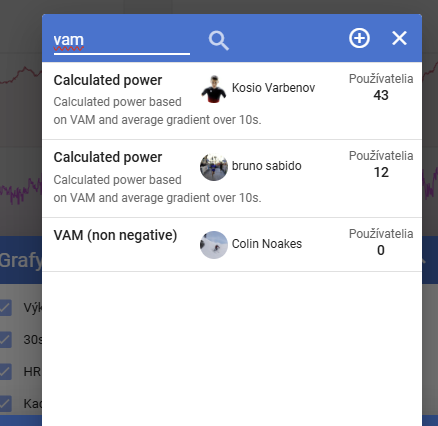

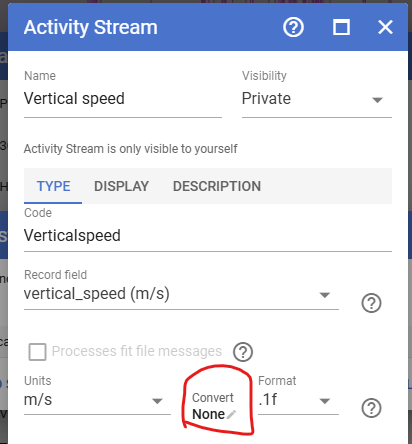

Hi @MedTechCD , Thank you! I tried it as you advised. However, I was unable to find the name of the VAM parameter for scripting. The thing is, when I search for “VAM” as you suggested, I get different results and nobody has “VAM” or “vertical speed” in their script. [image] However, I can find the recorded vertical speed in meters per second here. [image] It is also possible to add a converter. [image] But there is no *60 for having meters per minute. [image]

Could you perhaps share your script with me?

[MedTechCD]

I answered in the other thread where you originally posted

Server side data model for scripts

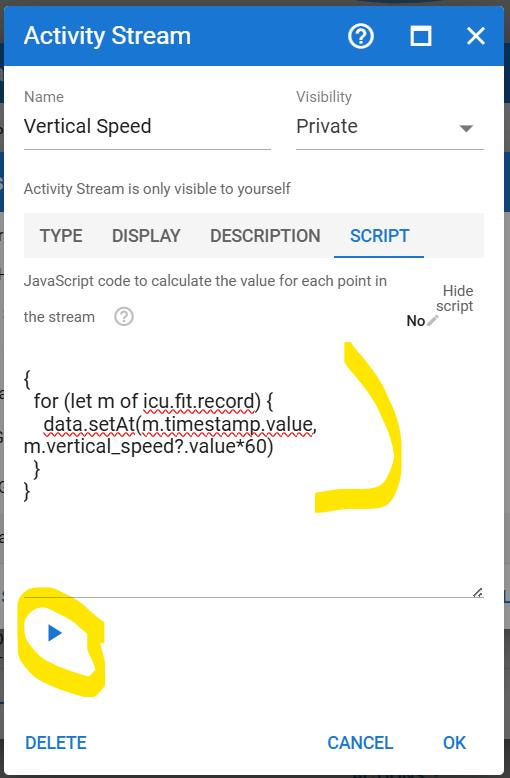

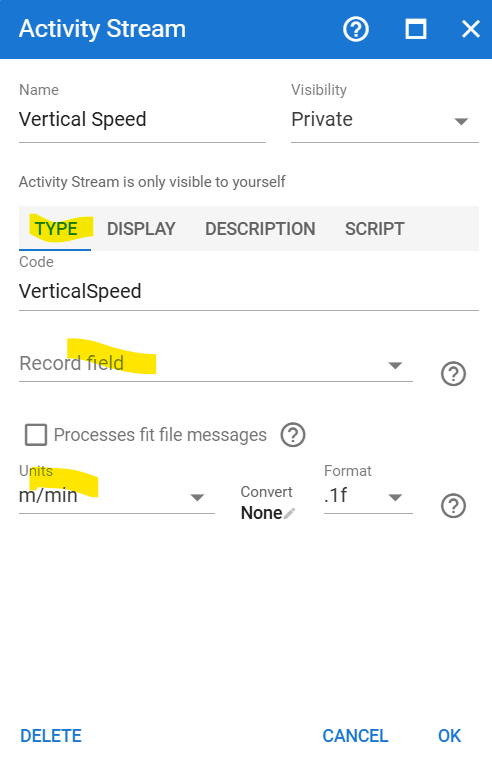

Cut this parameter and leave that field empty. The Script tab will become available [image] On the Script tab enter this: { for (let m of icu.fit.record) { data.setAt(m.timestamp.value, m.vertical_speed?.value*60) } } You should now have a custom stream with vertical speed in m/min. End result should look like this [image] [image] Hit the Play button to check if the script works.
